VMC650 CNC Vertical Machining Center 3 / 4 / 5 Axis CNC Milling Machines

Brand Name : HR

Model Number : VMC650

Certification : CE

Place of Origin : Shandong,China

MOQ : 1 sets

Price : $20700 1set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 40sets months

Delivery Time : 30 days

Packaging Details : WOODEN CASE

Area of work table : 900×400mm

Load capacity : 500 kg

Motor power : 5.5/7.5kw

Warranty : 1 Year

Weight : 4000KG

After-sales service provided : Online support

Type : Vertical

Condition : New

Voltage : 380V 50HZ

Product name : small metal mold processing CNC vertical machining center VMC650L

Spindle speed : 8000 rpm

Guideway : X,Y linear guideways,Z box guide ways

Tool magazine : drum type or round disc type tool magazine

Color : Custom-made

Spindle taper : BT40

Power(w) : 5.5KW

Contact Now

VMC650 CNC Milling Machine


Product Description

This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.Machining centers are usually classified according to the relative position of the spindle and the worktable, and are divided into horizontal, vertical and universal machining centers.

VMC650 CNC Vertical Machining Center 3 / 4 / 5 Axis CNC Milling Machines

Work table	Area of work table		900×400mm
	Load capacity		500 kg
spindle	Motor power		5.5/7.5kw
	Distance between the spindle end and the work surface		120-670 mm
	Spindle center to column guide rail		460 mm
	Speed		8000 rpm
	Taper of spindle		BT40
Distance of travel	X-Axis		700 mm
	Y-Axis		450mm
	Z-Axis		500 mm
Feed	X/Y/Z-axis fast moving		24/24/18mm(linear guide way)
	fast cutting speed mm /min		1-10000 mm/min
precision	Positional accuracy		±0.01 mm
	Repeat positional accuracy		±0.005 mm
Tools	Tool changer type		16 tools head type tool changer
	Max. tool length		300mm
	Max. Tool diameter		Φ80(adjacent tool)/φ150(not adjacent tool)
	Max.tool weight		8kg
	Tool changing time(tool-to-tool)		7sec
Data	Air pressure		0.6 Mpa
	Power Supply	Voltage(V)/frequency (Hz)	380/50
		Total capacity(KVA)	10
	Weight		4000 kg
	Diamention		2350×2150×2250mm

Widely applicable, the production gospel of various industries
 -------Automotive parts, bicycle parts
 -------Electrical and electric tool parts
 -------Optical accessories, railway accessories, petroleum machinery, printing machines

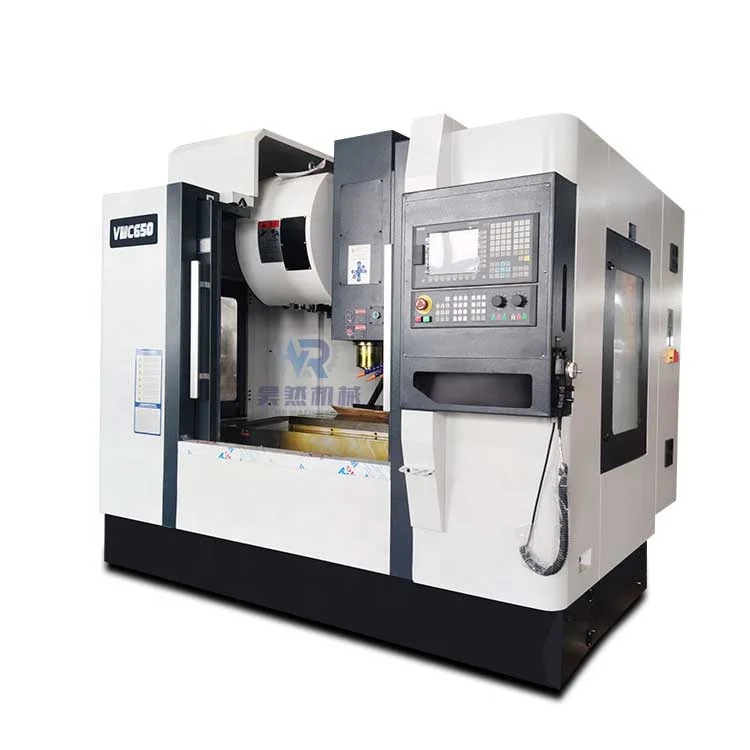

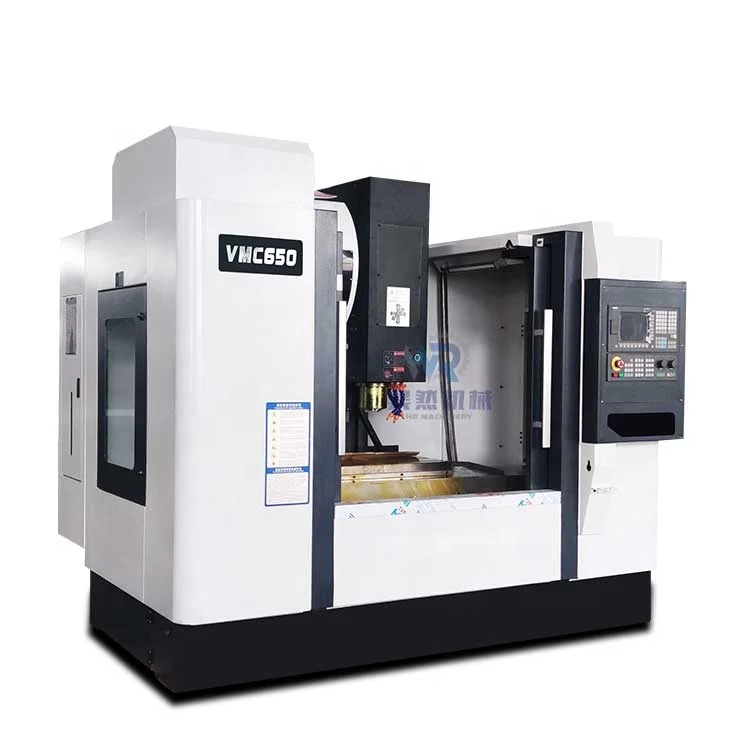

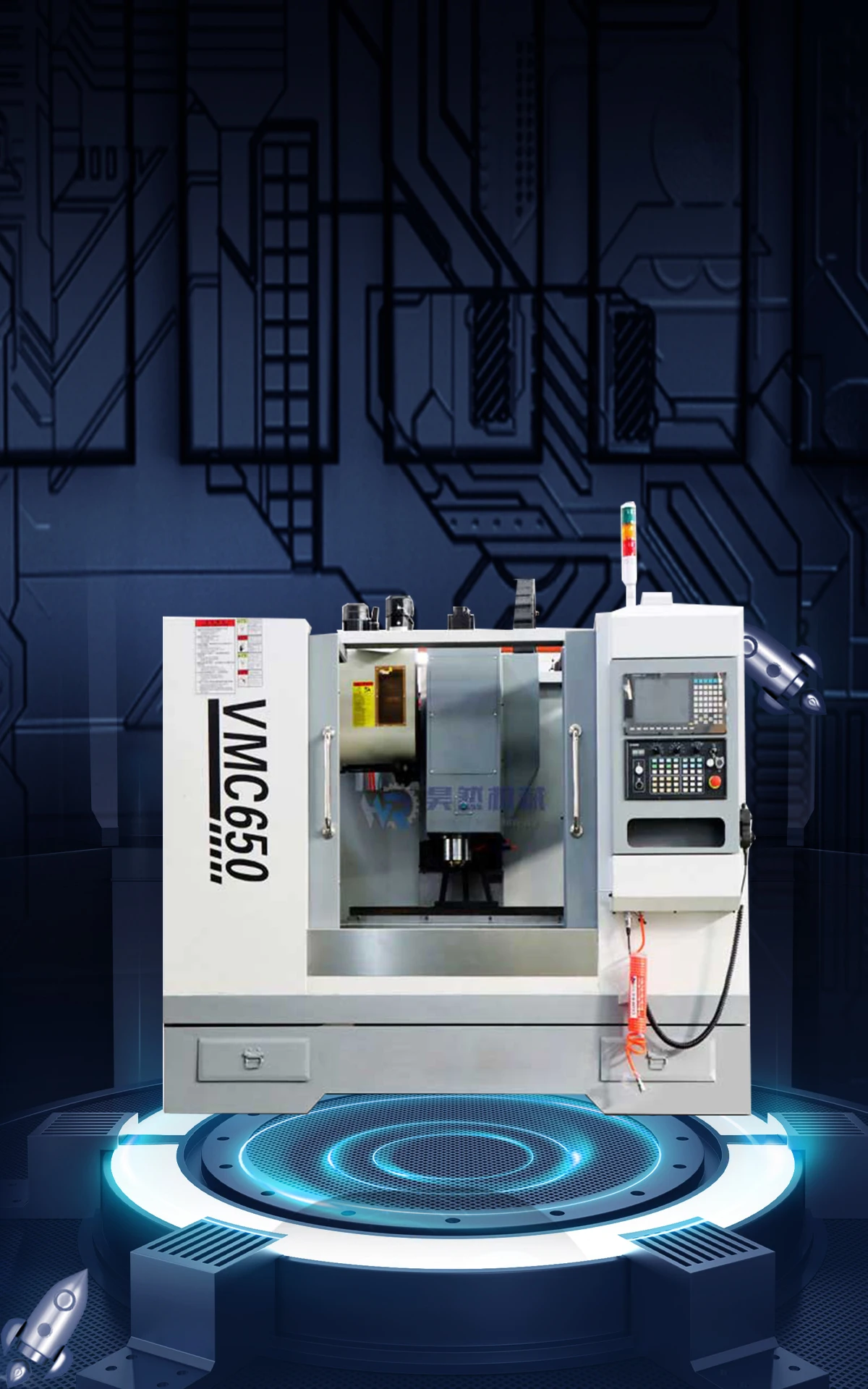

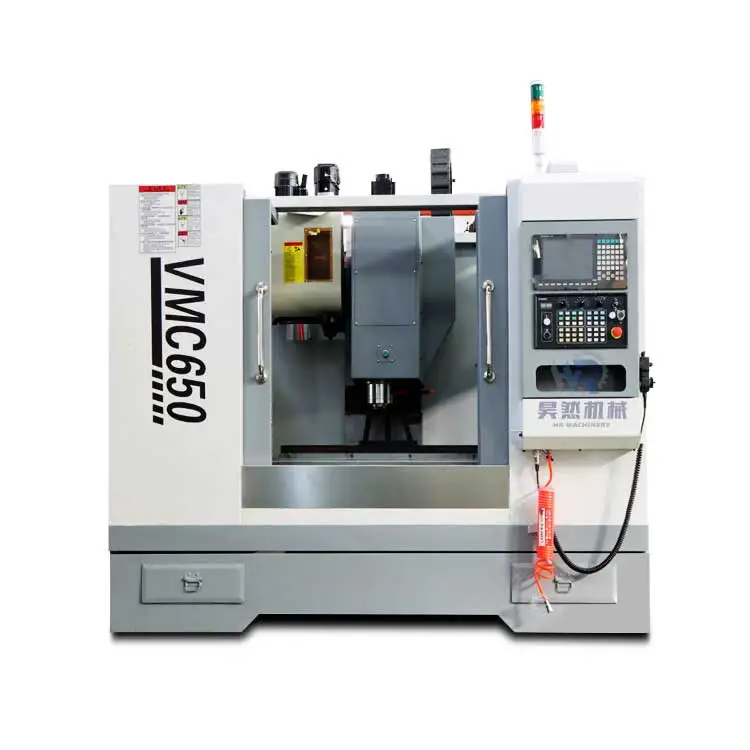

Detailed Images

Certificate

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product,please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.

Related Products

Company Introduction

Shandong HR machine Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement
 brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while
 meeting the personalized needs of users.

Our Services
We supply 24 hours on-line service,you could contact with us by email ,phone ,wechat ,whatsapp,skype etc.
Received your phone or mail,we will Analyze the problem immediately.
Supply professional solution, after analyze the problem, we give you our best solution.
The warranty period of the whole machine is 1 year. Under normal use, if the machine parts are damaged during the warranty period, we will provide free accessories. Outside the warranty period, if the parts are damaged, we only charge the cost price of the parts, and will never overcharge.
Provide lifetime free technical support, you can contact us at any time if you encounter difficulties in the process of use.
We provide overseas services, engineers can go to the customer's factory for debugging,installation, maintenance, and repair.(In case of non-epidemic situation).

Packing&Shipping

Port: Qingdao port or Shanghai port
Payment method: T/T, L/C, D/P, D/D etc.
Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
Delivery time: 30 days after receive the 30%T/T deposit.5.Non-fumigation packaging, we use seaworthy plywood.
Steel base plate, it is stronger 3-5 times than normal plywood base plate.
Water-proof and damp proof, water resistant film wraped all the machine.
Fully sheathed case,prevention of collision and keep the goods intact.

FAQ

Q1: How to buy the right product for you ?A1: You can pass on your requirements to me, and we will reply to you in time.

 Q2: About our after-sales service ?
 A2: One-year warranty for all kinds of products after sale service; If you find any defective parts in the first time, we will timely deal with the free new parts for you to replace the next order.

 Q3: How can I choose the most suitable machines ?
 A3: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model ,You can also send us the products drawing ,we will choose the most suitable machines for you .

 Q4: What are the terms of payment ?
 A4: We support a variety of payment methods, such as online bank transfer, prepaid card, carrier billing, domestic bank exchange,credit card, etc

 Q5: How long is the machine warranty?
 A5: warranty is one year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price.
